Shaft Components Overview

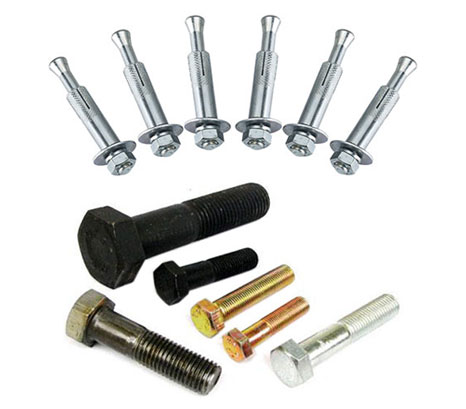

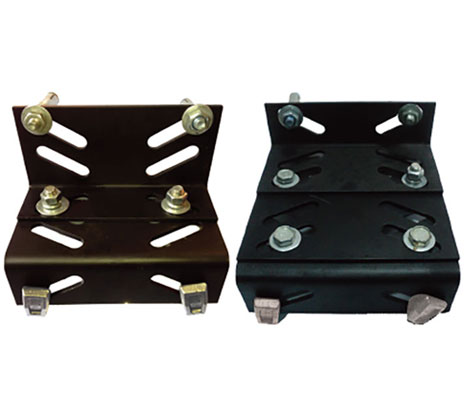

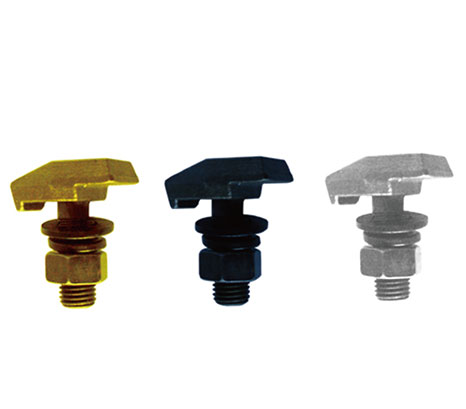

The vertical elevator shaft relies on several precision components for safe and efficient operation. Machined guide rail sections, often complemented by a cold drawn guide rail for tighter tolerances, form the continuous tracks that stabilize the car and counterweight. These rails are joined end‑to‑end using a fishplate, which ensures alignment and load transfer. A rail clip then secures each rail to the rail bracket, while anchor bolts & fasteners fix the bracket firmly into the shaft wall. Together, these engineered parts absorb dynamic forces, maintain alignment, and guarantee smooth, quiet elevator travel throughout the building’s lifecycle.
