Cabin & Cw Components Overview

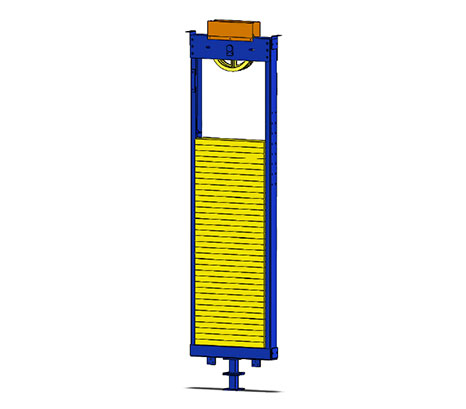

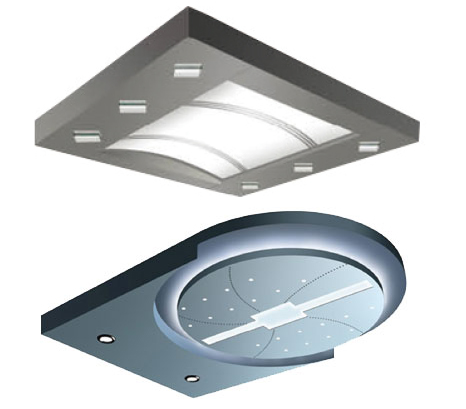

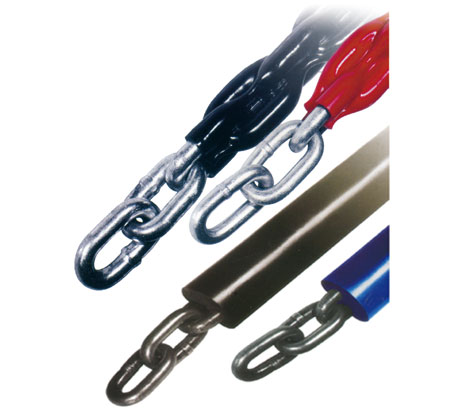

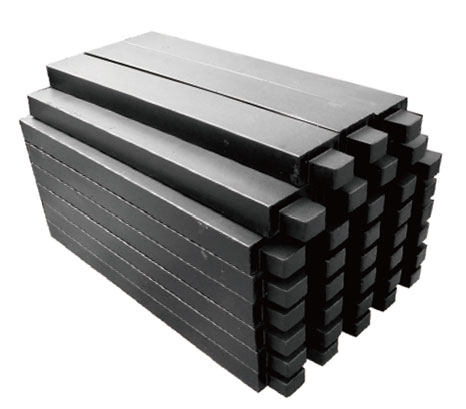

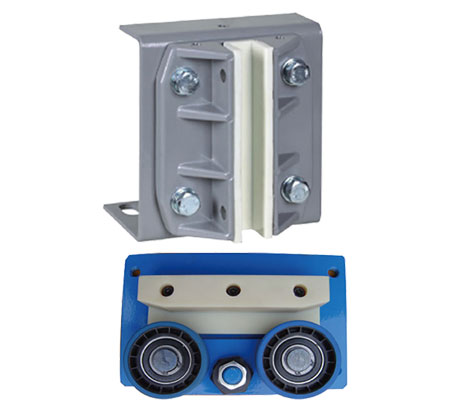

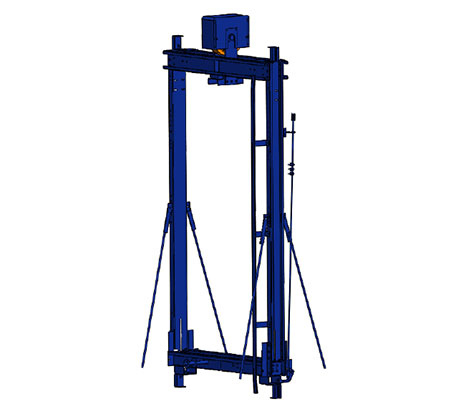

The elevator cabin and counterweight system forms the core of vertical transportation. The passenger cabin provides safe and comfortable space for riders, while the panoramic cabin with glass walls offers scenic views. For vehicle transport, the cabin for car elevator is designed with larger dimensions and reinforced structure. Above, the elevator ceiling integrates car LED light & air condit to ensure bright illumination and proper climate control. Inside the cabin, the handrail & floor offer support and a durable walking surface. The entire cabin is supported by the car frame & counterweight, which work together to balance the load. The counterweight block provides the necessary mass, while the compensation chain connects the car and counterweight to offset the weight of traveling cables during vertical motion. Finally, guide shoes attached to both the car frame and counterweight slide along the guide rails, maintaining precise alignment and ensuring smooth, quiet operation throughout the building's height.
