STEEL WIRE ROPE

Nova Elevator is a professional manufacturer of brand-compatible elevator components, providing STEEL WIRE ROPE, ELEVATOR WIRE ROPE, HOIST ROPE. OEM-spec.

Description

ROPE FOR OVER SPEED GOVERNOR

1. This rope is for low speed, low duty elevators.

2. If elevator with high speed, please contact us.

3. We can also produce as customer's requirements.

4. Above specifications just for your reference. Error may occur in actual situation.

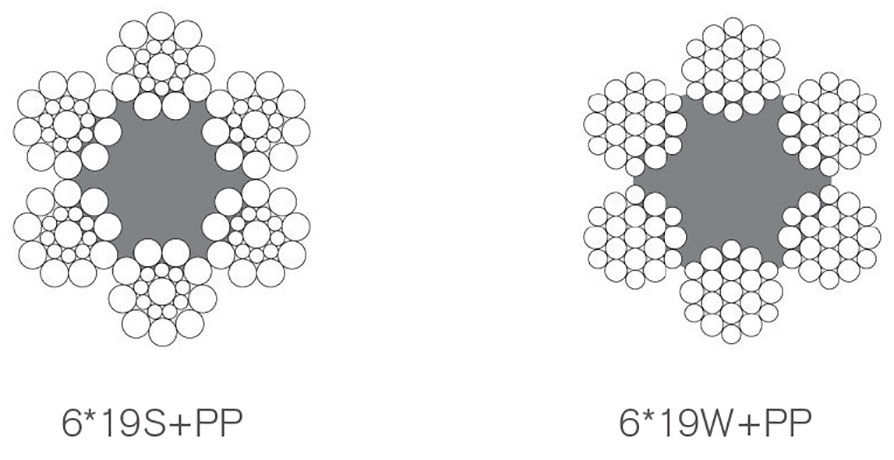

Nominal Rope Diameter	6*19S+PP	Minimum Breaking Load
		Dual Tensile, Mpa		Single Tensile, Mpa
		1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
6	12.9	17.8	19.5	18.7	21
8	23	31.7	34.6	33.2	37.4

ROPE FOR TRACTION MACHINE

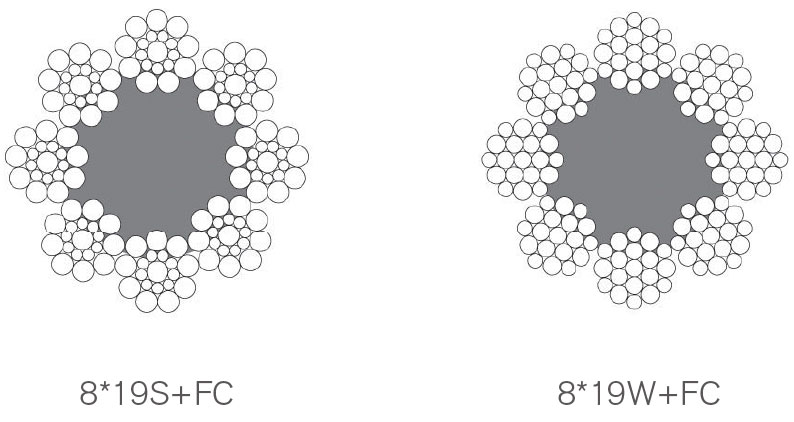

Natural fiber core(NFC): Suspension ropes for medium duty elevators

Elevator speed≤2.0M/S, Building height≤60M

Nominal Rope Diameter	Approx Weight	Minimum Breaking Load
		Dual Tensile, Mpa		Single Tensile, Mpa
		1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
8	21.8	28.1	30.8	29.4	33.2
9	27.5	35.6	38.9	37.3	42
10	34	44	48.1	46	51.9
11	41.1	53.2	58.1	55.7	62.8
12	49	63.3	69.2	66.2	74.7
13	57.5	74.3	81.2	77.7	87.6
14	66.6	86.1	94.2	90.2	102
15	76.5	98.9	108	104	117
16	87	113	123	118	133
18	110	142	156	149	168
19	123	159	173	166	187
20	136	176	192	184	207
22	165	213	233	223	251

ROPE FOR TRACTION MACHINE

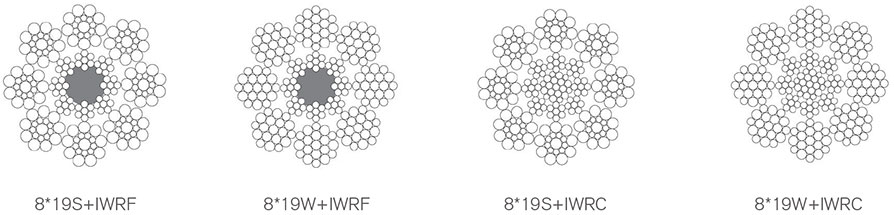

For IWRC, speed＞4.0m/s, Building height＞100m

For IWRF, 2.0＜speed≤4.0m/s, Building height≤ 100m

Nominal Rope Diameter

Approx Weight		Minimum Breaking Load
		Dual Tensile, Mpa				Single Tensile, Mpa
		1370/1770		1570/1770	1620/1770	1570		1620		1770
	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF
mm	Kg/100m		kN		kN		kN		kN		kN
8	26	25.9	35.8	35.2	38.0	37.4	35.8	35.2	36.9	35.2	40.3	39.6
9	33	32.8	45.3	44.5	48.2	47.3	45.3	44.5	46.7	45.9	51	50.2
10	40.7	40.5	55.9	55	59.5	58.5	55.9	55	57.7	56.7	63	62
11	49.2	49	67.6	66.5	79.1	70.7	67.6	66.5	69.8	68.6	76.2	75
12	58.6	58.3	80.5	79.1	85.6	84.2	80.5	79.1	83	81.6	90.7	89.2
13	68.8	68.4	94.5	92.9	100.0	98.8	94.5	92.9	97.5	98.5	106	105
14	79.8	79.4	110	108	117	115	110	108	113	111	124	121
15	91.6	91.1	126	124	134	132	126	124	130	128	142	139
16	104	104	143	141	152	150	143	141	148	145	161	159
18	132	131	181	178	193	189	181	178	187	184	204	201
19	147	146	202	198	215	211	202	198	208	205	227	224
20	163	162	224	220	238	234	224	220	231	227	252	248
22	197	196	271	266	283	283	271	266	279	274	305	300

1. We can also produce as customer's requirements.

2. Above specifications just for your reference. Error may occur in actual situation.

3. For more information, please contact us.
